Description:

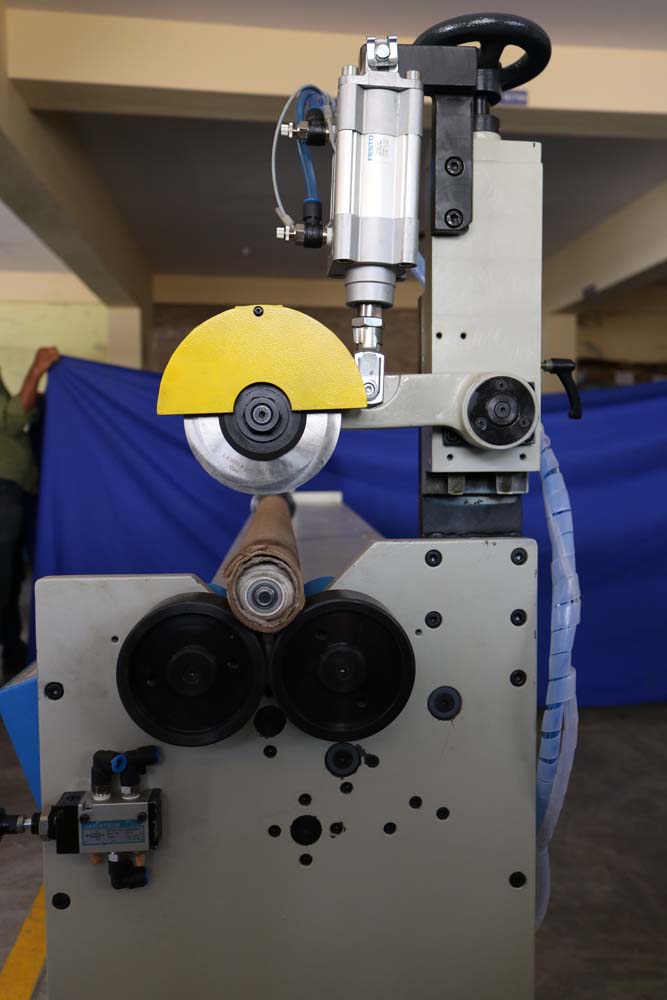

The NCC Core Cutting machine is the automatic core cutting machine that emphasizes on the user friendliness and short pay-back time. With the use of servo drive, accuracy and precision is achieved, creating a highly polished, burr free finish. Its capacity (45-50 cuts per minute) covers the needs of most medium sized label printing companies.
Technical Specifications:
| Motor | 1HP 3Phase/415V Induction Motor |
| Linear Movement | 400W Servo Motor |
| Cutting | Pneumatic Actuators |
| Core Length | 1200 mm |
| Minimum Inner Diameter | 25mm |
| Maximum Inner Diameter | 76mm |
| Maximum Wall Thickness | 14mm |
| Minimum Cut Length | 10mm |
| Accuracy | ±0.5mm |
Key Features:
930 RPM induction motor
Timer Pulley driven
Pneumatic cylinders and gauges
HS Cutting blade for precision cut
Manual core loading
Easy to change job
User friendly control system
Multilingual Text Panel HMI
