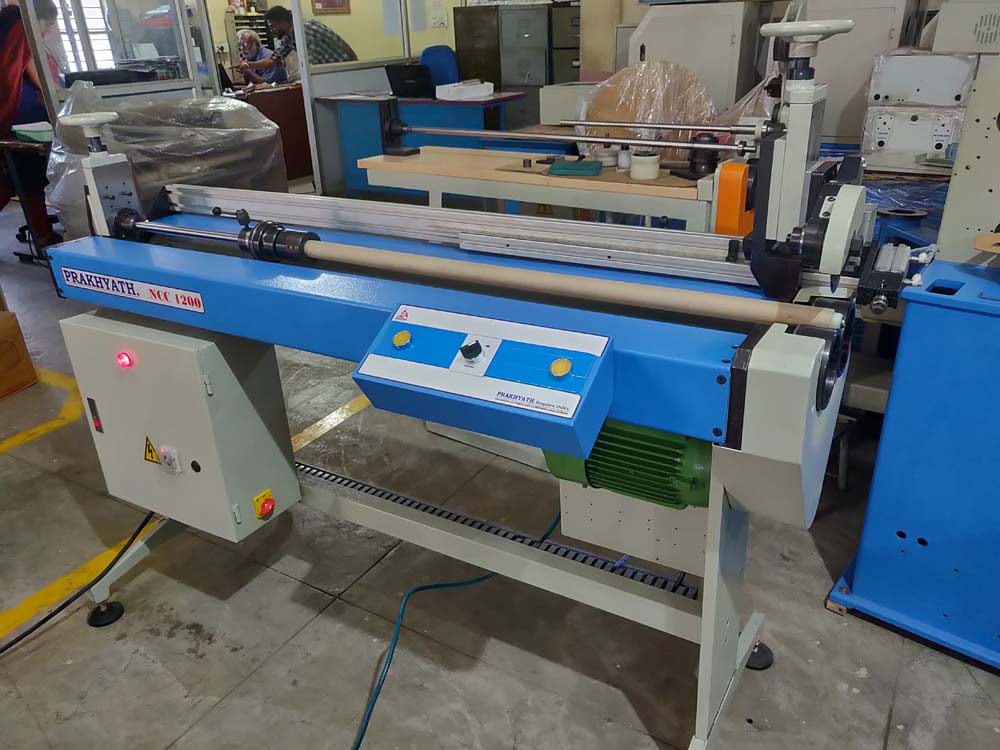

NCC (Pneumatic Core Cutting Machine)
NCC (Pneumatic Core Cutting Machine)
Description:
NCC is the pneumatic version of core cutting machine with manual linear movement and pneumatic actuator cutting. Ease of operation and fast cutting can be achieved with 15-20 cuts per minute. With pneumatic actuators high quality, accurate finish with the minimal operator input by creating a highly polished burr free finish to the core.
Technical Specifications:
| Motor | 1.5HP 3Phase/415V Induction Motor |
| Linear Movement | Manual |
| Cutting | Pneumatic Actuator |
| Minimum Inner Diameter | 25mm |
| Maximum Inner Diameter | 76mm |
| Maximum Wall Thickness | 14mm |
| Minimum Cut Length | 10mm |
| Accuracy | ±1mm |
Key Features:
Constant speed Induction Motor
Guided ball screw driven
HS Cutting blade for precision cut
Manual-Lock Core holders
